Manage Every Heater from One App with This Smart Heating Controller
Imagine controlling your restaurant's entire patio heating—front terrace, back deck, poolside—from your phone while checking tables inside. Or managing your home's outdoor warmth before guests arrive, all from the couch. The Bromic Affinity smart heating controller turns that convenience into reality, connecting your Platinum or Tungsten Collection heaters to WiFi and Bluetooth for complete control from anywhere.
Important: This On/Off controller provides full-power on and off control only. For variable heat output adjustment, Bromic offers separate Dimmer controller models.
Key Features
WiFi and Bluetooth connectivity — Control heaters from anywhere on your network or within 30 feet via Bluetooth
Multi-heater management — Operate multiple controllers and heater groups from one app interface
Voice control integration — Works with Amazon Alexa and Google Home for hands-free operation
Zone and scene automation — Group heaters by location and schedule operation for different times
IP54 weather protection — Built for outdoor installation with professional-grade durability
Up to 6000W per channel — Each channel controls substantial heating capacity or up to 10 gas heaters
Who Benefits Most from Smart Heating Controllers?
Commercial Properties & Hospitality Venues
Restaurant patios, hotel outdoor spaces, and bars benefit from centralized control that lets staff manage multiple heating zones without walking the property. Schedule heaters to turn on before service starts and off at closing, reducing energy waste while maintaining guest comfort throughout service hours.
Luxury Residential Installations
Homeowners with multiple outdoor heaters gain the convenience of controlling their entire system from one app. Turn on pool area heating before guests arrive, manage patio warmth during dinner parties, and monitor usage—all from your phone without manually operating individual heaters.
How the Affinity System Delivers Seamless Control

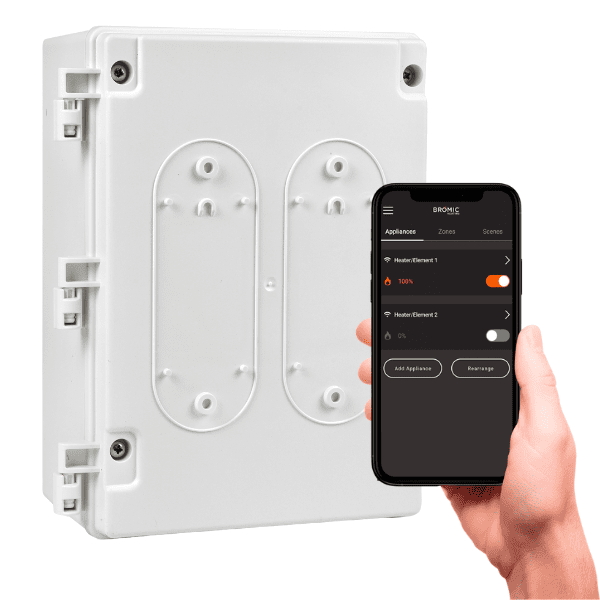

The Affinity controller connects your heaters to the cloud through your existing WiFi network, enabling control from the Bromic Heating App on any compatible smartphone or tablet. The system works through three integrated components:
Dual connectivity options — WiFi provides off-site control and advanced features, while Bluetooth enables local operation within 30 feet
Cloud-based app control — The Bromic Heating App communicates with your controllers over secure encrypted connections
Multi-user admin system — Assign different permission levels to family members, staff, or guests
This combination means you position heaters anywhere on your property and control them remotely—no need to run control wiring or install wall switches in every location.

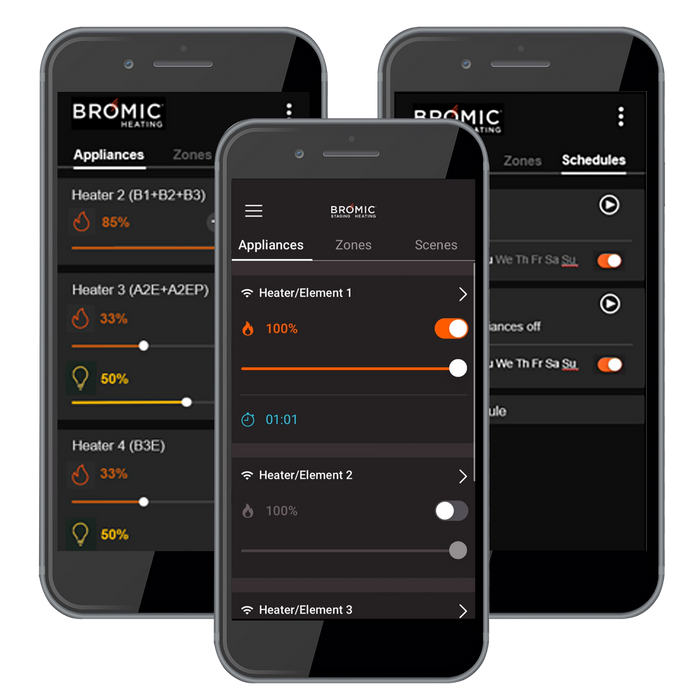

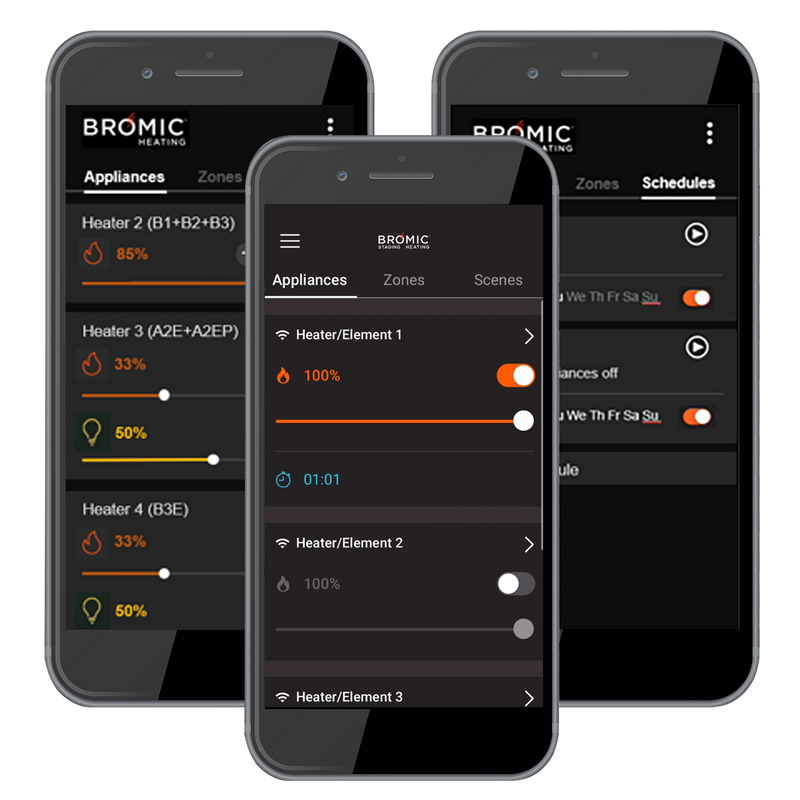

See the Bromic Heating App in Action
Smart Features That Simplify Heating Management
Zone creation and grouping — Control multiple heaters simultaneously by creating zones like "Front Patio" or "Pool Deck"
7-day scene scheduling — Set heaters to turn on automatically before service hours or turn off after closing
Timer functionality — Set heaters to run for specific durations, ensuring they don't stay on unnecessarily
Usage statistics tracking — Monitor energy consumption patterns and calculate heating costs directly in the app
Multi-site management — Property managers with multiple locations control all sites from one app
Voice command integration — "Alexa, turn on patio heaters" activates heating without opening the app
Installation and Professional-Grade Construction

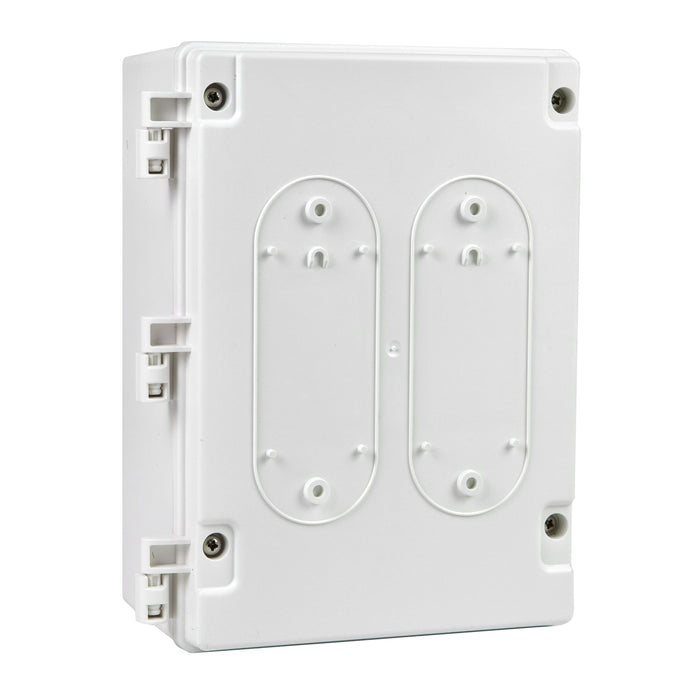

Affinity controllers require installation by a licensed electrical contractor and connect to your existing WiFi network. Available in 1-channel, 2-channel, and 5-channel configurations to match your property's heating layout.
IP54 protection rating — Sealed against dust and water spray for reliable outdoor operation
Licensed installation required — Professional electrical installation ensures proper setup and code compliance
Platinum and Tungsten compatible — Works with Bromic's commercial-grade electric and gas heater collections

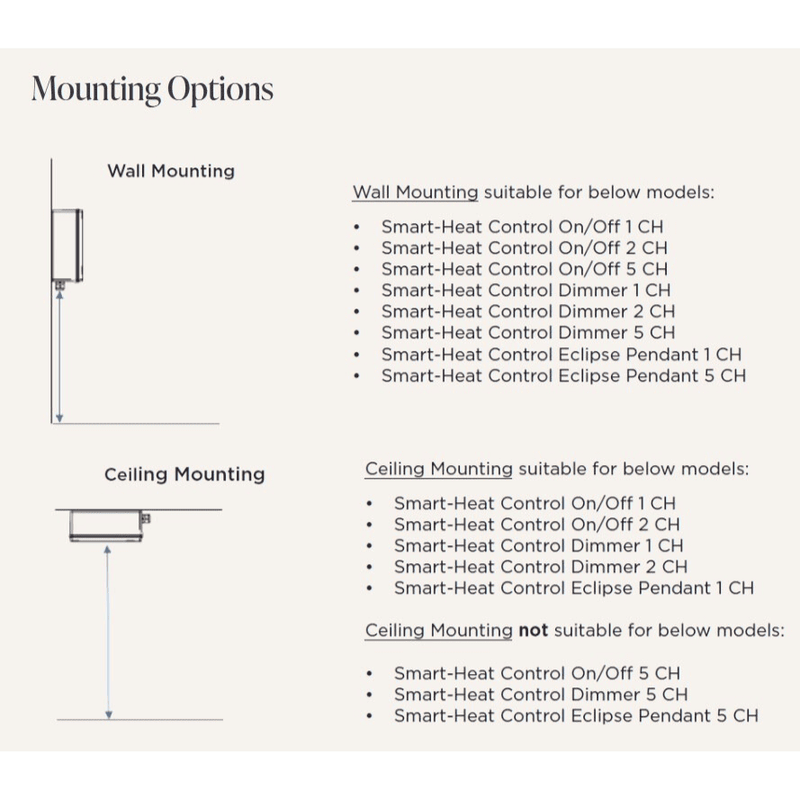

Wall or ceiling mounting — Flexible installation options (1-channel and 2-channel models support both, 5-channel is wall-mount only)
Operating range: -4°F to 86°F — Functions reliably across typical outdoor temperature conditions
Questions about setup or compatibility? Call (888) 883-7568 to discuss your heating layout with our team.
Which Controller Do You Need?
The number of channels determines how many heater groups you can control independently. Think of channels like separate switches—each channel controls one group of heaters together, either on/off or dimmed.
Start with Your Layout
How many areas need independent control?
If your front patio and back deck need to operate at different times, that's 2 channels. If everything operates together as one zone, that's 1 channel. If you're a hotel with lobby patio, pool deck, rooftop bar, restaurant terrace, and garden area, that's 5 channels.
Your Situation
You Need
Why
Small patio or single outdoor area with multiple heaters that operate together
1-Channel
All heaters turn on/off as one group
Restaurant with front patio + back deck that need separate control
2-Channel
Control each area independently based on seating
Hotel, resort, or large venue with 3-5 distinct outdoor areas
5-Channel
Manage multiple zones efficiently from one controller
Property with 6+ independent heating zones
Multiple Controllers
Use multiple 5-channel controllers managed through one app
Check Your Total Wattage Per Zone
Each channel handles up to 6000W of electric heaters or 10 gas heaters (gas requires 100-127V electrical supply). Here's what that means in real heater quantities:
If Your Heaters Are
Maximum Per Channel
2000W (single-element)
3 heaters
3000W (single-element)
2 heaters
3400W (single-element)
1 heater
4000W (dual-element)
1 heater
6000W (dual-element)
1 heater
Gas heaters (any wattage)
10 heaters
Example: Your back deck has four 2000W heaters (8000W total). You'll need to split them across 2 channels minimum—three heaters on channel 1 (6000W) and one heater on channel 2 (2000W). Both channels will still turn on/off together via the app's zone feature, but the electrical load is properly distributed.
Verify Your Electrical Supply
Your electrician needs to know this during installation:
1-Channel and 2-Channel: Work with single-phase or 2-phase power (standard for most commercial and residential properties)
5-Channel: Requires 3-phase power (common in hotels, large restaurants, and commercial buildings)
Gas heaters: Require 100-127V supply only (lower voltage than electric)
Not sure what electrical service you have? Your electrician or property manager can confirm this in 30 seconds by checking your main panel.
Still not sure which controller fits your setup? Call (888) 883-7568 with your heater model numbers and layout. We'll walk you through the calculation in 5 minutes.
Complete Technical Specifications
Specification
1-Channel (BH3130051)
2-Channel (BH3130052)
5-Channel (BH3130053)
Number of Channels
1
2
5
Maximum Capacity Per Channel
6000W or 10 gas heaters
6000W or 10 gas heaters
6000W or 10 gas heaters
Voltage Options
100-127V (1kW), 208-277V (6kW), 200V (6kW Japan)
100-127V (1kW), 208-277V (6kW), 200V (6kW Japan)
3-Phase: 220/380V, 230/400V, 240/415V, 277/480V, 120/208V (North America), 100/200V (Japan)
Supply Phase
Single Phase
Single or 2 Phase
3 Phase
Protection Rating
IP54
IP54
IP54
Connectivity
WiFi (2.4GHz), Bluetooth 4.2+
WiFi (2.4GHz), Bluetooth 4.2+
WiFi (2.4GHz), Bluetooth 4.2+, Ethernet (expansion board included)
Dimensions
11.4" x 8.0" x 4.4"
11.4" x 8.0" x 4.4"
19.7" x 13.4" x 8.0"
Weight
3.1 lbs
3.6 lbs
24.3 lbs
Operating Temperature
-4°F to 86°F
-4°F to 86°F
-4°F to 86°F
App Requirements
iOS 14.3+ or Android 8.1+, Bluetooth 4.2+
Voice Control
Amazon Alexa, Google Home
Expansion Board
Optional (sold separately)
Optional (sold separately)
Included
Note: Expansion Board enables wired Ethernet connection and Building Management System (BMS) integration via 0-10V input. Does not add additional control channels.
Frequently Asked Questions
Do I need WiFi for the controller to work?
No. The controller operates via Bluetooth when within 30 feet, allowing individual heater control and timer functions. WiFi unlocks advanced features like off-site control, zones, scheduling, and multi-user access.
Can multiple people control the heaters at the same time?
Yes, when connected via WiFi. Multiple users can control heaters simultaneously with customizable admin and user permission levels. Bluetooth connections allow only one device at a time.
Will this work with my existing Bromic heaters?
The On/Off controller is compatible with Bromic's Platinum and Tungsten Collection gas and electric heaters. Gas heaters work only with On/Off models on 100-127V supplies. Check your heater model documentation or contact our team to confirm compatibility.
How difficult is installation?
Installation requires a licensed electrical contractor due to the high-voltage wiring involved. The contractor will mount the controller, wire it to your electrical supply and heaters, then help you connect it to your WiFi network. Initial app pairing must be done within 30 feet via Bluetooth.
What happens if my internet goes down?
The controller automatically reverts to Bluetooth operation when WiFi connectivity is lost. You can still control heaters locally within 30 feet using the app. WiFi features restore automatically when your network connection returns.
Can I control heaters from different buildings or properties?
Yes. The app supports multi-site management, allowing you to switch between different properties and control all connected controllers from one interface—ideal for property managers overseeing multiple locations.
Ready to Upgrade to Smart Heating Control?
Simplify heating management across your property with a smart heating controller that works from anywhere. Whether you're running a commercial venue or managing a luxury residence, the Affinity system gives you professional-grade control without the complexity.
Commercial Properties: Call (888) 883-7568 to discuss multi-zone setups and installation for restaurants, hotels, or hospitality venues.
