Manual Wall Switch

The new manual wall switches allow for simple on/off control of your outdoor heaters.

Bromic’s Manual Wall Switches are the simple on/off solution for outdoor heating control. With indoor and covered outdoor single and double pole options, the 20 Amp, 120/277 volt manual wall switches can be placed where convenient access is needed.

Specifications

MODEL	BH3130071	BH3130072	BH3130081	BH3130082
DESCRIPTION	Manual Single 20Amp Switch 120- 277V Indoor Kit	Manual Dual 20Amp Switch 120- 277V Indoor Kit	Manual Single 20Amp Switch 120- 277V Outdoor Kit	Manual Dual 20Amp Switch 120- 277V Outdoor Kit
AMPERAGE	20 A	20 A	20 A	20 A
Dielectric Voltage	Withstands 1500V for 1 min.	Withstands 1500V for 1 min.	Withstands 1500V for 1 min.	Withstands 1500V for 1 min.
ENDURANCE	50,000 cycles minimum	50,000 cycles minimum	50,000 cycles minimum	50,000 cycles minimum
GROUNDING	Self-Grounding	Self-Grounding	Self-Grounding	Self-Grounding
TEMPERATURE RISE	Maximum 30 degrees C rise	Maximum 30 degrees C rise	Maximum 30 degrees C rise	Maximum 30 degrees C rise
VOLTAGE	120/277 VAC	120/277 VAC	120/277 VAC	120/277 VAC
OPERATING TEMPERATURE	-40°C to 65°C	-40°C to 65°C	-40°C to 65°C	-40°C to 65°C
SWITCH COLOR	WHITE	WHITE	WHITE	WHITE
WALL PLATE COLOR	WHITE	WHITE	GREY	GREY
WARRANTY	1 Year Parts

FAQs

Can I control an entire heating appliance with a single switch?

These wall switches are rated at 20 amps per switch and not all heating appliances can be controlled by one switch. It is up to a certified electrician to determine use cases. For example, a 6000W Tungsten heating appliance has two 3000W elements and will be able to have individual element control for power variability.

What products are compatible with wall switches?

All Tungsten and Platinum models in both gas and electric are compatible.

Are the wall switch kits surface mount or in-wall?

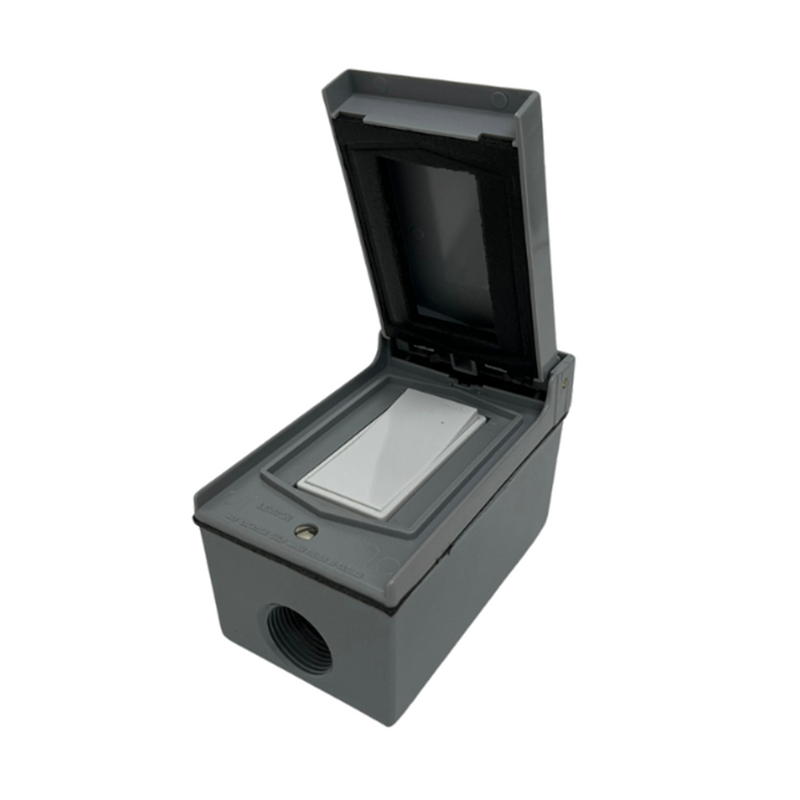

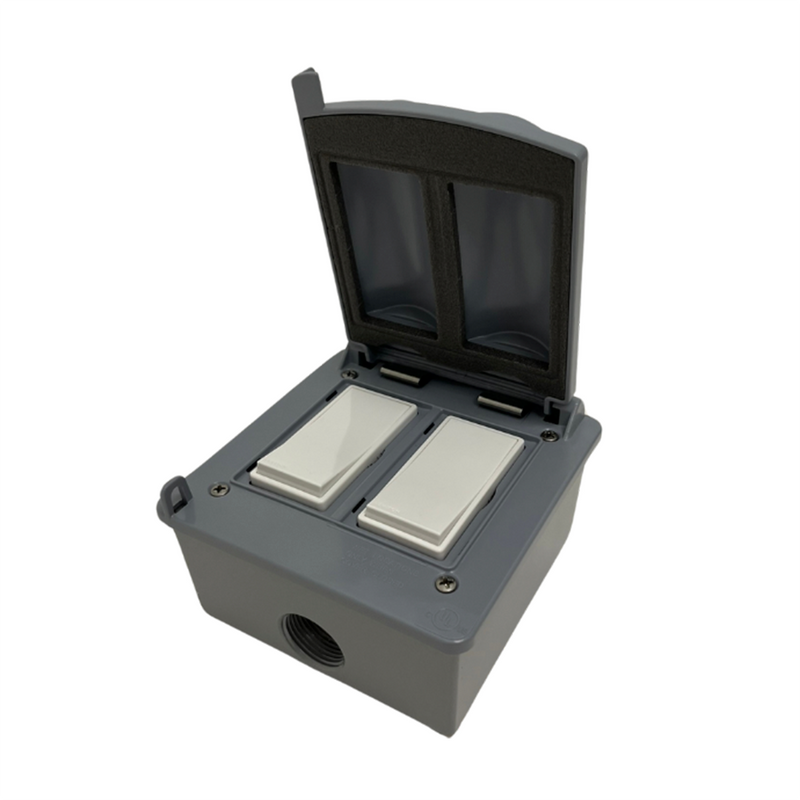

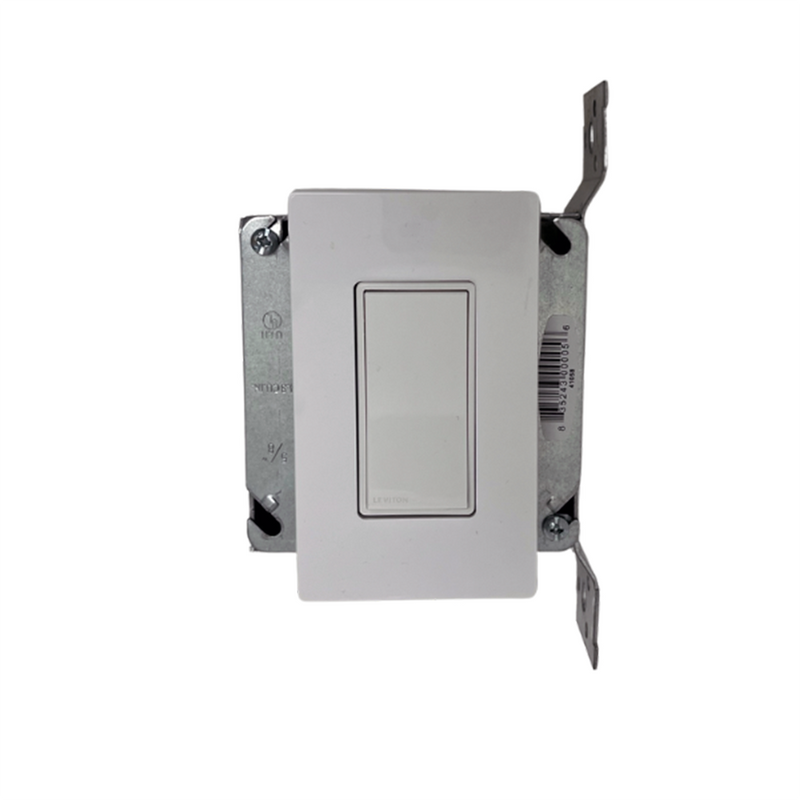

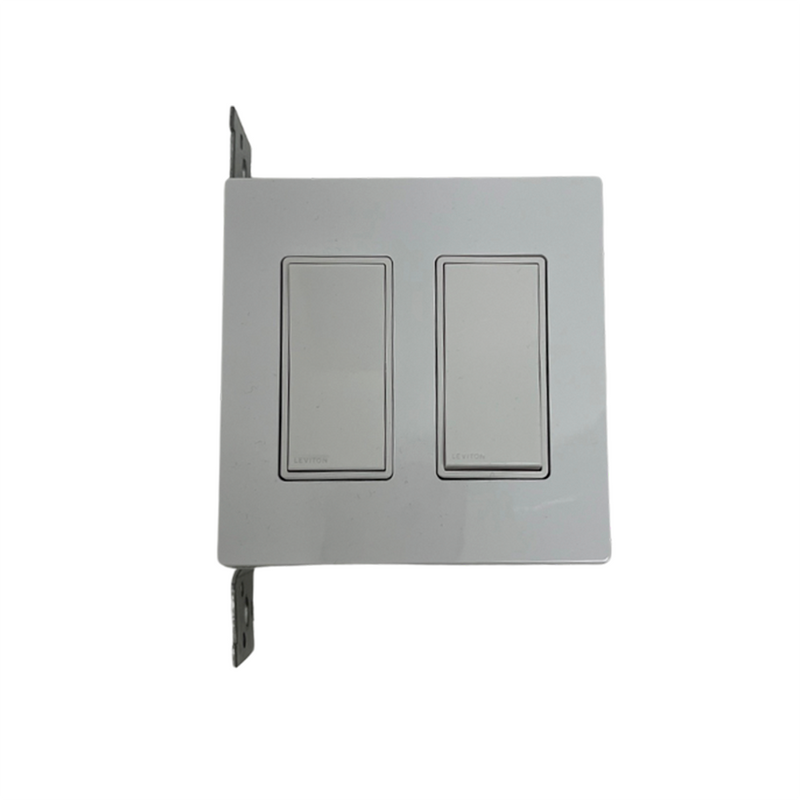

The indoor wall switch kit is in-wall and the outdoor wall switch kit is surface mounted.

What color is the switch and box?

The switch is a standard white and the switch box is a dark gray.

What size breaker and wire do I need for these switches?

This will be determined by a licensed electrician/installer in accordance with local code.
