Put a Modern Flames Spectrum Slimline 50 in Your 2x4 Wall and Skip the Bump Out
The Spectrum Slimline 50 recesses into a framed 2x4 wall, so you get a built in fireplace look without building the wall out. Its 5/8 inch trim lets your tile or wood finish right up to the opening, and there's still room for a TV above it.
Key Features

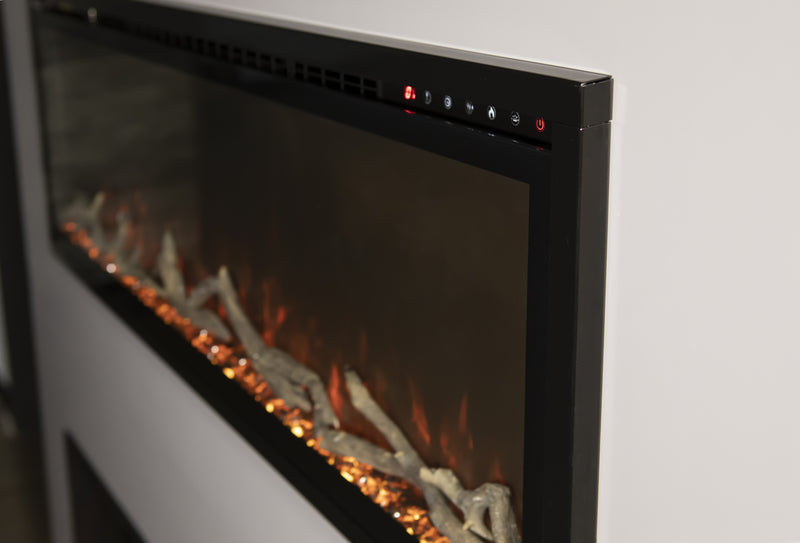

- Slim trim: Replaces the large black glass surround, so more of the front is flames.
- Recessed or wall mounted: Flush mount it in a 2x4 wall, or hang it on the bracket.
- Fits beneath a TV: Modern Flames lists it for installation under a TV, so one wall holds both.
- Hybrid-FX LED flames: 10 flame colors, set separately from 10 ember bed colors.
- 5,000 BTU heater: Supplemental heat from a standard 120 V plug, with a thermostat.

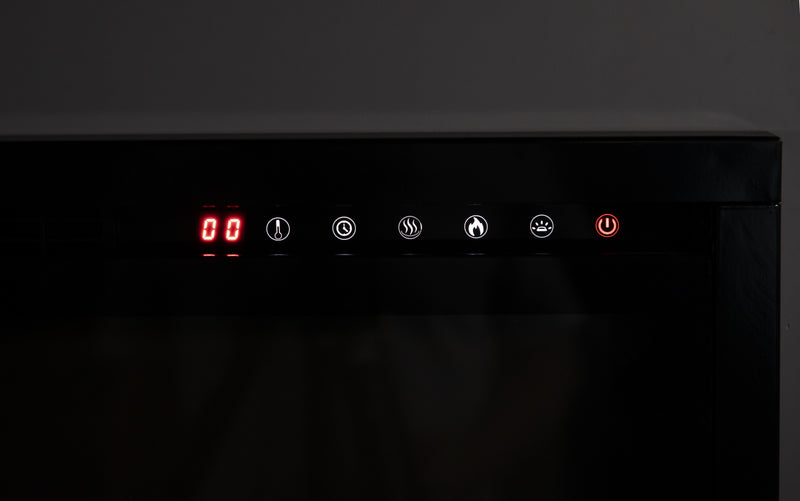

- Touch panel and remote: Six touch buttons on the unit, plus a remote in the box.
Questions about your wall, framing or outlet for a 50 inch fireplace? Call (888) 883-7568 or email contact@resortsdepot.com
The Full Picture

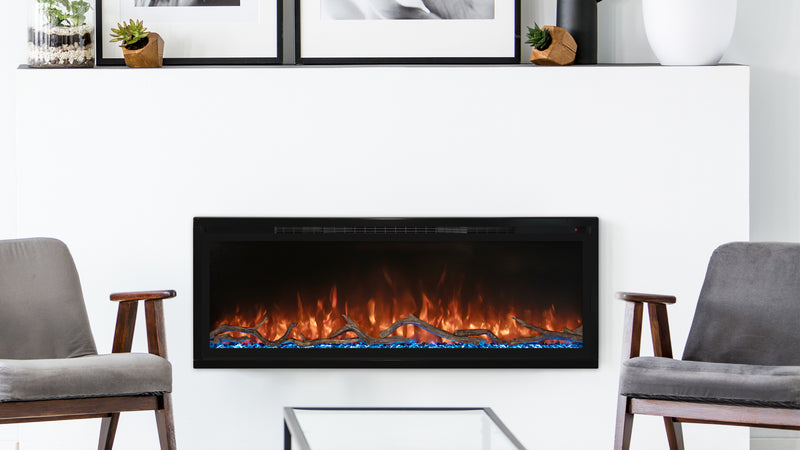

Picture tile running right up to a long band of flames. The Spectrum Slimline 50 is 4 5/8" deep overall and 49 3/4" wide by 17" high, with the flames filling a 46" by 12" viewing area.
Recessed, it goes into a framed opening 48 7/8" wide, 16 1/4" high and at least 4" deep. If you'd rather not open the wall, you hang it on the wall bracket and add the side skirts.
Who It's For
Ideal for living rooms, bedrooms, hotel rooms and rental units that have the wall space for a fireplace but not the depth. Homeowners get a 50 inch electric fireplace in a standard stud wall, and a property owner can plug it in or have an electrician hardwire it. It is rated for indoor use only and gives supplemental heat.
How the Hybrid-FX Flames Work
The Hybrid-FX flames come from high intensity LEDs shining through layered optics, with no video screen inside, so you get adjustable color instead of recorded fire. You shape the look with three controls:
- Flame colors: 10 colors plus a fade mode that cycles through them, with memory.
- Ember bed colors: 10 colors or a fade mode, set separately from the flames.
- Speed and brightness: 3 flame speeds, with 5 brightness levels each for flames and ember bed.
Specifications
Modern Flames Spectrum Slimline 50 Specifications
| Specification | Details |
|---|---|
| Model | SPS-50B |
| Overall size | 49 3/4" W x 17" H |
| Viewing area | 46" W x 12" H |
| Depth | 4 5/8" overall, 3 7/8" back box |
| Back box width | 48 7/16" |
| Finished opening | 48 7/8" W x 16 1/4" H x 4" D minimum, finishing material non load bearing |
| Trim | 5/8" |
| Installation | Recessed flush mount in a framed 2x4 wall, or wall mount on the bracket with side skirts |
| Power | 120 V, 60 Hz, 1465 W (5,000 BTU) |
| Heater settings | Low 733 W, high 1465 W |
| Circuit | Dedicated 15 A grounded outlet and a dedicated breaker of 15 A or higher, no extension cord |
| Cord length | 72" |
| Flame technology | Hybrid-FX LED |
| Flame and ember bed colors | 10 each, plus a fade mode for each |
| Flame speeds | 3 |
| Brightness levels | 5 for flames, 5 for ember bed |
| Timer | 30 minutes to 8 hours |
| Thermostat | 0 to 10, switchable between °C and °F |
| Controls | 6 button touch panel at the upper right with digital thermostat readout, plus remote with one CR2025 battery included |
| Media | 8 driftwood logs with small glacier crystals |
| Clearances | 0" at bottom, sides and back. 11.8" at top to a mantel and to the ceiling. 36" to combustibles such as drapes and furniture |
| Use | Indoor use only, supplemental heat only |
| Warranty | 5 years from date of purchase when registered at modernflames.com; 2 years if not registered |
What You Get From a 50 Inch Slimline Fireplace
- Two heat settings: Low draws 733 W and high draws 1465 W, with the thermostat readout on the panel.
- Timer up to 8 hours: Pick anywhere from 30 minutes to 8 hours and the fireplace shuts itself off.
- Low energy LED: The flame effect runs on what Modern Flames calls low energy LED technology.
Downloads & Documents
What's Included & Warranty
Included with Your Spectrum Slimline 50
- Fireplace: With wall bracket
- Side skirts: For wall mounting
- Metal brackets: Secure the unit in a recessed opening
- L shape bracket: For the wall mounted install
- Screws and drywall anchors: Long and short screws included
- Cable connector and cover plate: For hardwiring
- Driftwood log set: 8 logs, plus small glacier crystals

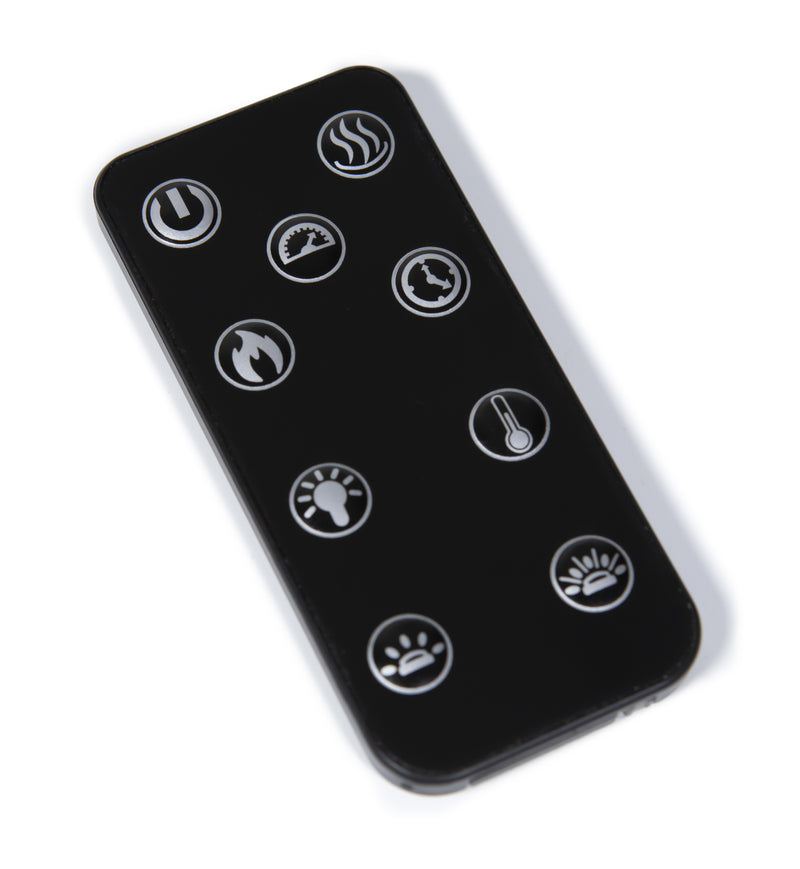

- Remote and manual: CR2025 battery included
Tools are not included. The manual calls for a Phillips screwdriver, stud finder, level, tape measure, electric drill, 1/4" wood drill bit and hammer.
Warranty & Certifications
- 5 year warranty: Coverage runs 5 years from the date of purchase when you register at modernflames.com, and 2 years if you don't.
- Authorized dealer: Resorts Depot is an authorized Modern Flames dealer.
